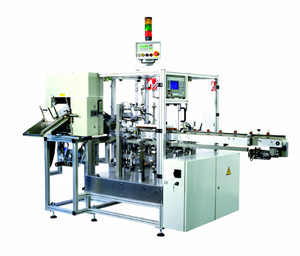

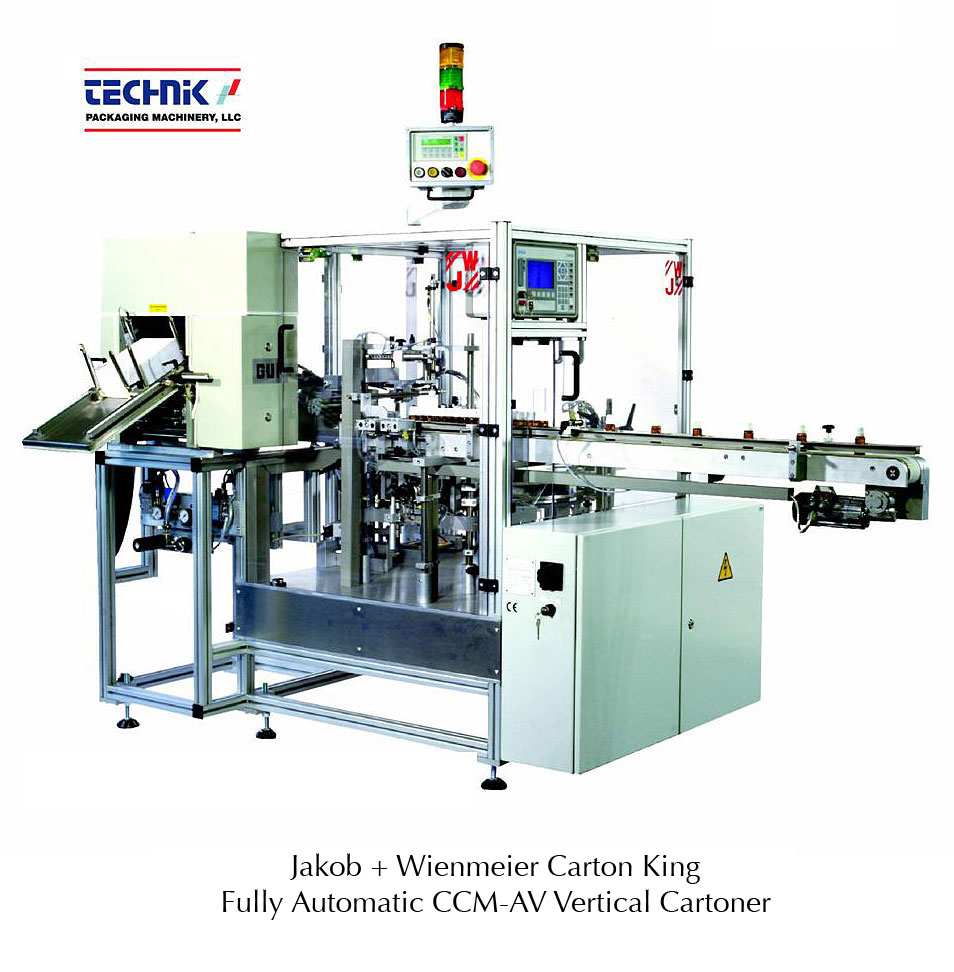

J+W CCM-AV Automatic Vertical Cartoner

click for full size image

Specifications

Operation: The operation of the model CCM-AV cartoner is based on a horizontally mounted double wheel (turret) containing eight exchangeable cut out pairs of segments into which a carton blank is erected and held. This turret indexes the cartons to stations fixed on the machine frame around the turret. At or between each station an operation is performed. These operations include erecting the carton blank, folding of major and minor flaps, tucking or gluing, leaflet insertion, printing and many other available options. Each indexing of the turret is initiated as soon as the product has been automatically inserted into the carton from an automated infeed system and certain safeties have been confirmed.

Function: Intermittent motion

Performance: Up to 60 cartons per minute

Closure type: Tuck or hot melt glue

Carton magazine: Holds 550 mm stack of carton blanks (extensions optional)

Range of FormatsABH packaging dimentions diagram
Minimum, mm7010 45
Max, mm (Tuck)12520 250
Max, mm (Hot melt)160100 250
