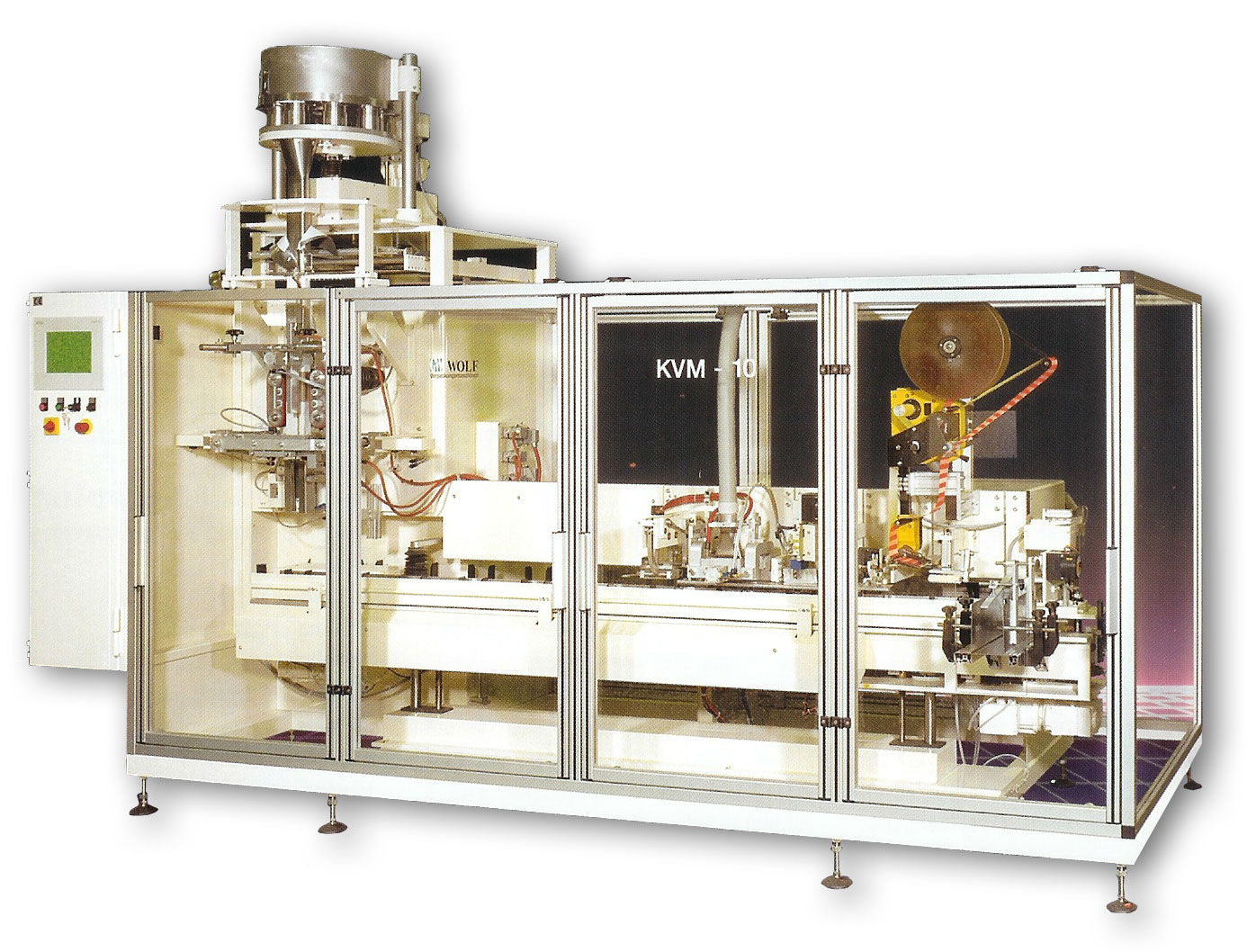

Wolf KVM 10 Top-Closing Machine

click for full size image

Specifications

Operation: As the bagger pulls film from roll stock and forms it into a tube, sealing tools apply heat to the seal areas to form the longitudinal seal and the cross seal of the bag. Each time a cross seal for a new bag is made the bagger calls for a charge of product from the feeder. As soon as the correct amount of product is dispensed, the filled bag is advanced to receive a partial top seal. As the top seal is formed the finished bag is cut off from the next bag to be filled and is placed into an integrated pocket conveyor. From there the bag travels through a set of stations including a top sealing station and various folding sections to form the specified top closure configuration. The finished bag is discharged from the pocket conveyor for further packing.

Technical Data:

Bag cross section: min. 60 x 40 mmPower supply: 400 V, 3 Ph, 60 Hz
Bag cross section: max. 120 x 100 mmEnergy requirem.: 4.5 kW
Bag length: 110 - 350 mmProtection class: IP 54
Filling volume: 2000 cmAir requirem.: 20 Nl/min at 6 bar
Film reel diam.: 400 mmWeight: 600 kg
Performance*: 70 bpmColor: Ivory, RAL 1013
*Depending on product and film
