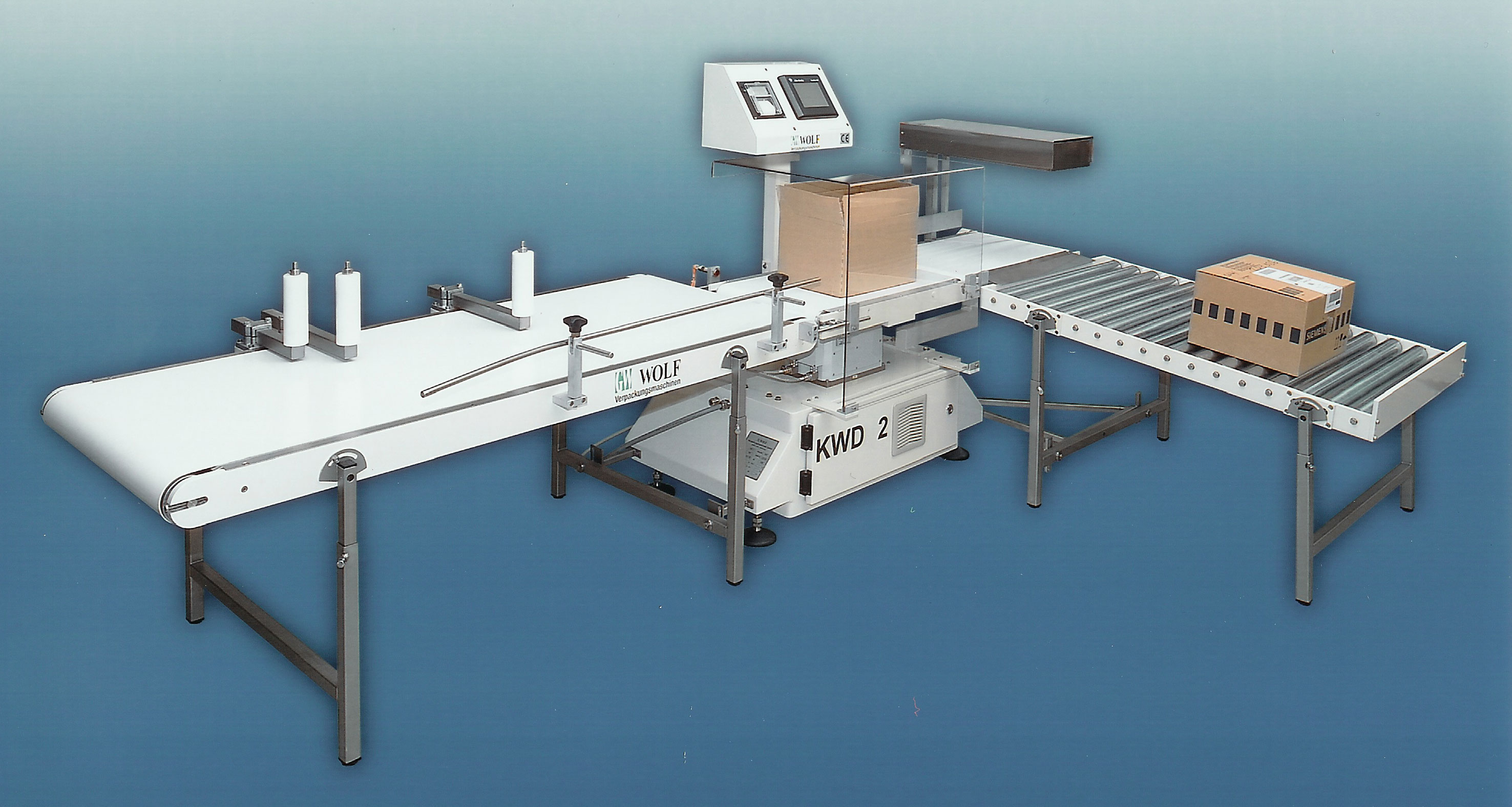

Wolf KWD 2 Checkweigher

Wolf KWD 2 Checkweigher

click for full size image

Specifications

Operation: A checkweigher typically connects to a discharge conveyor of a packaging unit. Finished products reach the first of three conveyors integrated into the checkweigher. Its purpose is to accelerate a single product and create a gap to the following products. This is to avoid weight checking of two products at the same time. The second conveyor is supported by a weighcell which will actually checkweigh each product while it travels across. The third conveyor takes over the product from the weighing conveyor and provides the separation for automatic discharge of an overweight or underweight product. The parameters for weight ranges are programmable and a feedback signal to the feeding unit is a standard feature.

Technical Data:

Weighing range: 10 - 3,500 gPower supply: 230 V, 3 Ph, 60 Hz
Performance*: 200 weighments/minEnergy requirem.: 0.5 kW
Accuracy: +/- 0.2 gProtection class: IP 54
Weight: 180 kgColor: Ivory, RAL 1013
*Depending on product
