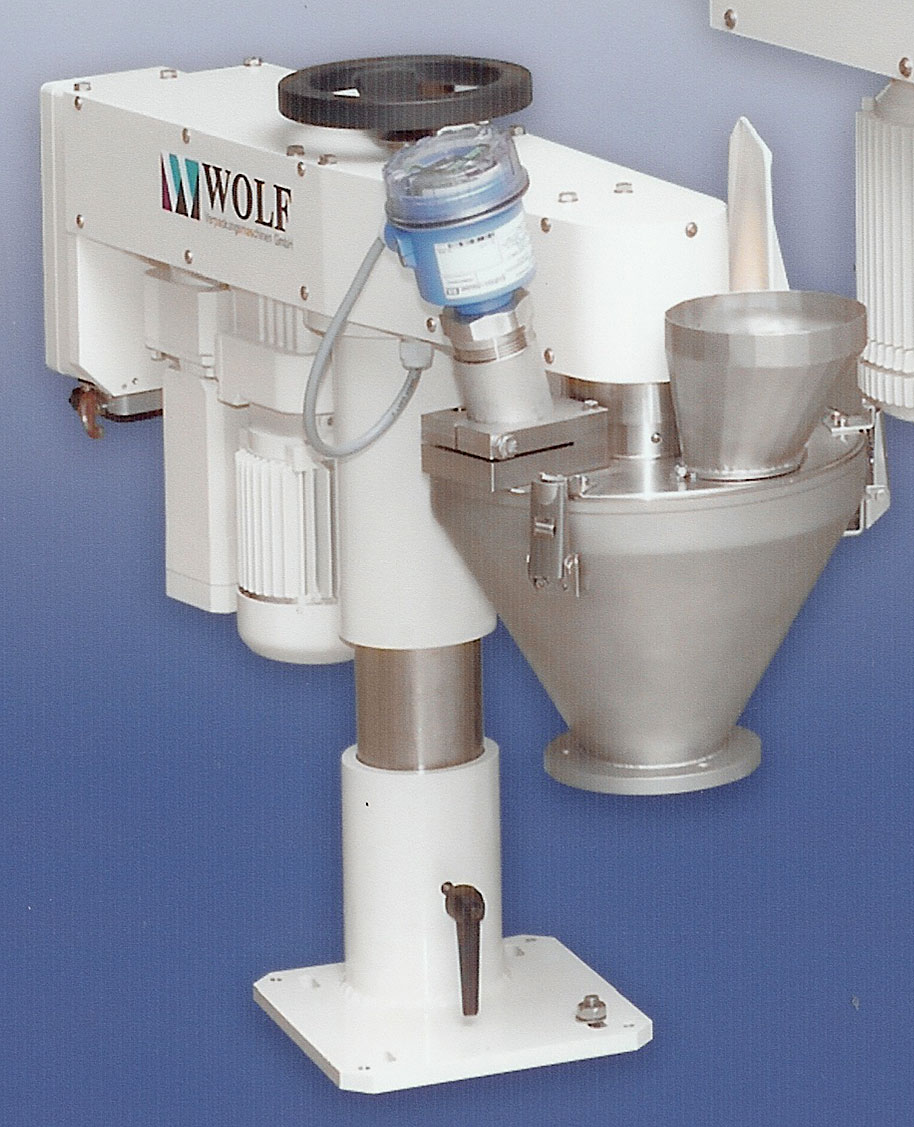

Wolf SD 25 Auger Feeder

Wolf SD 25 Auger Feeder

click for full size image

Specifications

Operation: An auger feeder delivers product on demand into the formed bag. The interchangeable auger screw has a servo drive capable of short cycling rates at high rpm. The signal to start turning for each product delivery cycle comes from the bagger or a footswitch in semi-automatic operation. Inside the hopper is a driven agitator which sweeps the product toward the center of the hopper to fill the flights of the auger screw. The hopper is equipped with a level probe to monitor and control the supply of product by the horizontal feed screw.

Technical Data:

Feed volume: 0.1 - 1,000 max. cmPower supply: 400 V, 3 Ph, 60 Hz
Performance*: 180 cycles/minEnergy requirem.: 1.5 kW
Position accuracy: <0.05 degreeProtection class: IP 54
Screw diameter: 11 - 35 mmWeight: 65 kg
*Depending on productColor: Ivory, RAL 1013
