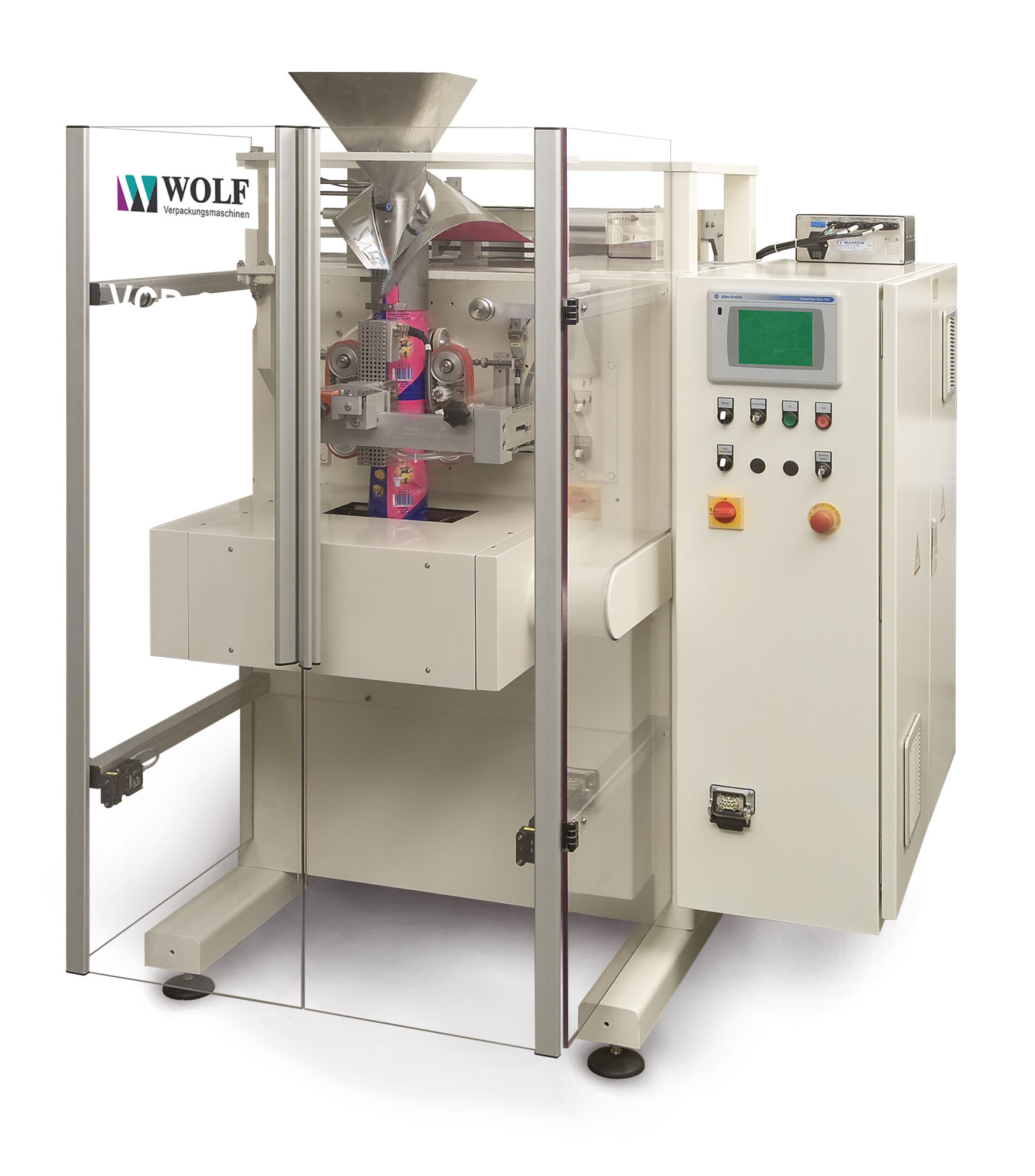

Wolf VCD250 Bagging Machine

Wolf VCD 250 Bagging Machine

click for full size image

Specifications

Operation: While the bagger continuously pulls film from roll stock and forms it into a tube, continuous motion sealing tools apply heat to the seal areas to form the vertical seal and the cross seal of the bag. Each time a cross seal for a new bag is made the bagger calls for a charge of product from the feeder. As soon as the correct amount of product is dispensed, the filled bag is advanced to receive a top seal. As the top seal is made, the finished bag gets cut off from the next bag to be filled.

Technical Data:

Bag width: 50 - 250 mmPower supply: 400 V, 3 Ph, 60 Hz
Bag length: 80 - 450 mmEnergy requirem.: 4.5 kW
Filling volume: 3000 cmProtection class: IP 54
Film reel diam.: 400 mmAir requirem.: 30 Nl/min at 6 bar
Performance*: 200 bpmWeight: 1000 kg
*Depending on product and filmColor: Ivory, RAL 1013
