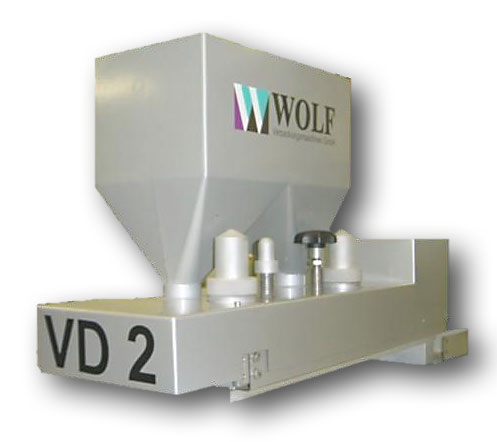

Wolf VD 2 Cupfeeder

Wolf VD 2 Cupfeeder

click for full size image

Specifications

Operation: A cupfeeder draws product from a supply hopper and measures it into portions determined by the size of interchangeable cups mounted in the cupfeeder turret. Empty cups rotate underneath the supply hopper to be filled. A sweep gate levels off the filled cup as it is rotated by the turret. On demand a filled cup is rotated over a funnel where the product is discharged from the cup. Each cup size volume is adjustable in an approx. ratio of 2:1.

Technical Data:

Feed volume: cmPower supply: 400 V, 3 Ph, 60 Hz
Performance*: cycles/minEnergy requirem.: kW
Feed accuracy: +/- 0.2 - 2.0 %Protection class: IP 54
Weight: kgColor: Ivory, RAL 1013
*Depending on product
