Wolf VPP180 Bagger

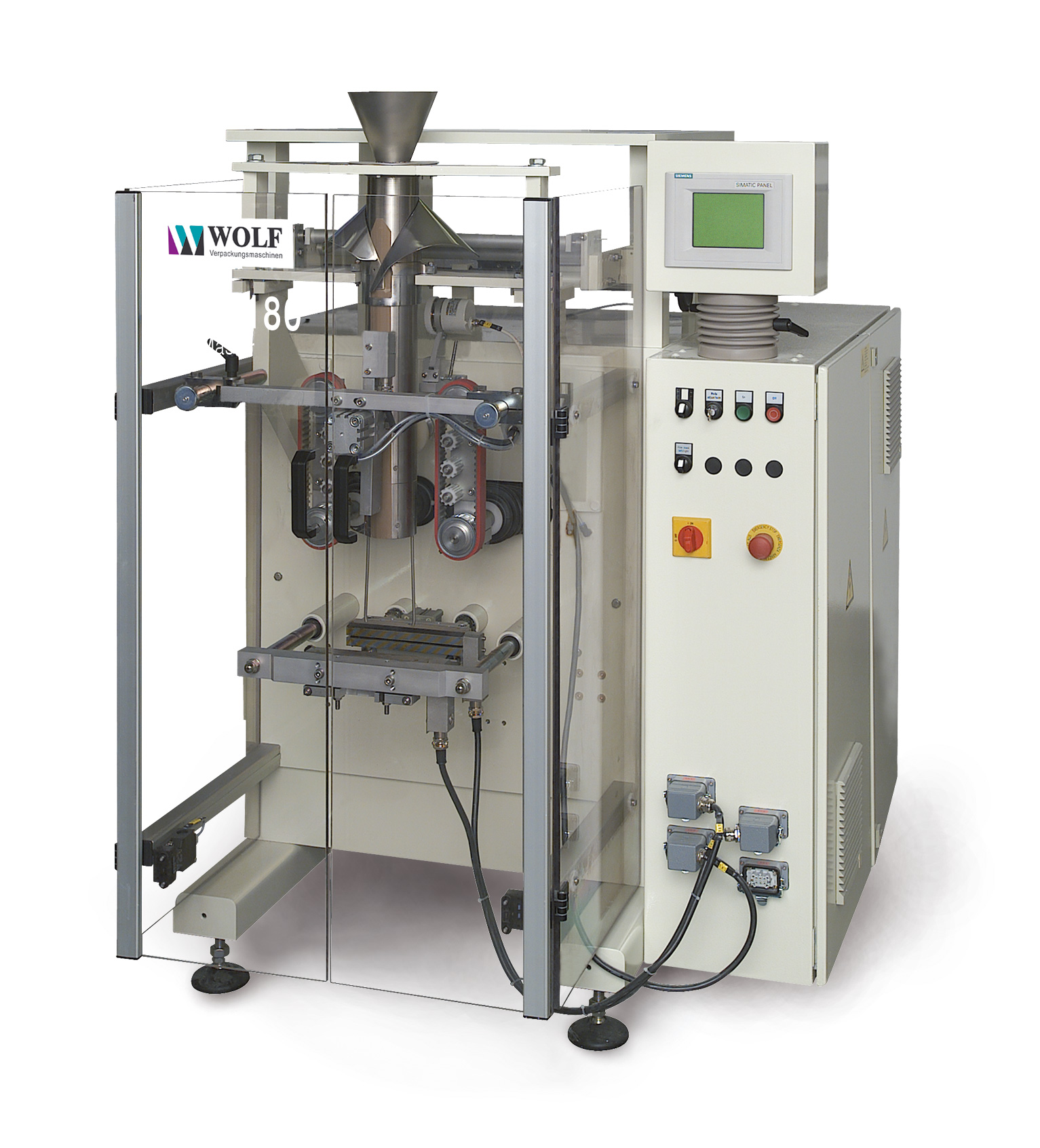

Wolf VPP 180 Bagging Machine

click for full size image

Specifications

Operation: As the bagger pulls film from roll stock and forms it into a tube, sealing tools apply heat to the seal areas to form the longitudinal seal and the cross seal of the bag. Each time a cross seal for a new bag is made the bagger calls for a charge of product from the feeder. As soon as the correct amount of product is dispensed, the filled bag is advanced to receive a top seal. As the top seal is formed the finished bag is cut off from the next bag to be filled. The finished bag is released from the cross sealing jaws and a discharge chute directs it to further transport or packaging.

Technical Data:

Bag width: 50 - 180 mmPower supply: 400 V, 3 Ph, 60 Hz
Bag length: 80 - 300 mmEnergy requirem.: 4.5 kW
Filling volume: 1000 cmProtection class: IP 54
Film reel diam.: 400 mmAir requirem.: 20 Nl/min at 6 bar
Performance*: 120 bpmWeight: 600 kg
* Depending on product and filmColor: Ivory, RAL 1013
